1. Regional Industrial Ecosystem & Environmental Corrosivity
Vizianagaram district and the Bobbili Industrial Growth Centre host heavy metallurgical ferro-alloy smelting plants, historical jute processing mills, food processing operations, and biomass power utilities. Operating in close proximity to high-temperature furnace atmospheres and corrosive mineral slurries demands heavy-duty non-metallic materials.

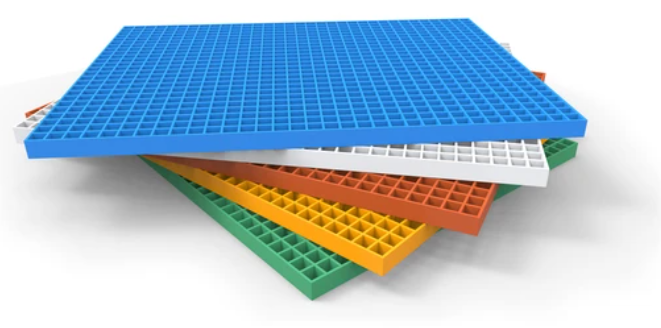

FRP Marine & Industrial Solutions delivers engineered composite solutions across Vizianagaram—fabricating non-conductive furnace platform gratings, ferro-alloy acid washing sumps, jute mill moisture-proof ventilation ducts, and structural safety ladders.
Industrial assets in Vizianagaram District face accelerated electrochemical degradation due to atmospheric chlorides, acidic ambient vapors, high ambient temperatures, and continuous processing contact with aggressive chemical media. Conventional mild steel and galvanized structures require repainting every 12–18 months and risk catastrophic structural thinning. Engineered Fiber Reinforced Polymer (FRP) composites eliminate electrochemical corrosion entirely, delivering a maintenance-free service life of 25+ years.
2. Key Industrial Sectors & Engineered Composite Applications
FRP Marine & Industrial Solutions tailors custom composite fabrications to the specific operating demands of local manufacturing facilities, chemical plants, and municipal utilities across Vizianagaram:
Ferro-Alloy Smelting Cluster (Vizianagaram/Kothavalasa)
Smelting facilities utilize our magnetic-neutral dielectric platform gratings near high-amperage electric arc furnaces, cooling water headers, and acid gas scrubber hoods.
Jute & Textile Processing Mills
Jute mills install our humidity-proof FRP air conditioning ducts, moisture-resistant machine shrouds, and chemical softening treatment tanks.
Bobbili Industrial Growth Centre & Agro-Plants
Manufacturing plants implement our water storage tanks, effluent neutralization sumps, and corrosion-resistant walkway structures.
3. Chemical Resistance & Polymer Matrix Selection Guide
Proper composite performance depends on matching the optimal thermoset polymer resin matrix to the specific chemical concentration, temperature, and mechanical stress profile of the application:
| Chemical Reagent | Concentration | Max Temp | Recommended Resin Matrix | Corrosion Barrier |
|---|---|---|---|---|
| Hydrochloric Acid (HCl) | Up to 37% | 100°C | Epoxy Novolac Vinyl Ester (Derakane 411/Hetron 922) | 2.5mm + C-Glass Veil |
| Sulfuric Acid (H2SO4) | Up to 70% | 95°C | Bisphenol-A / Vinyl Ester Resin | 2.5mm + Synthetic Veil |
| Sodium Hydroxide (Caustic) | Up to 50% | 85°C | Vinyl Ester / Isophthalic Polyester | 2.5mm + Nexus Synthetic |
| Coastal Seawater / Brine | Hyper-Saline | 80°C | Isophthalic Marine Resin / Gelcoat | 1.5mm + Marine Gelcoat |
| Chlorinated Solvents & VOCs | Process Grade | 115°C | Dual-Laminate (PP/FRP or PVDF/FRP) | 3.0mm Extruded Liner |
4. Comparative Material Mechanics: FRP vs Steel vs Stainless vs HDPE
A rigorous engineering comparison demonstrates why Fiber Reinforced Polymer composites provide the lowest total cost of ownership (TCO) and highest structural reliability in harsh corrosive environments:
| Engineering Property | Engineered FRP | Structural Mild Steel | Stainless Steel 316L | HDPE (High Density Poly) |
|---|---|---|---|---|
| Tensile Strength (MPa) | 180 – 300 MPa | 400 – 500 MPa | 480 – 580 MPa | 20 – 35 MPa |
| Density (g/cm³) | 1.6 – 1.9 (Lightweight) | 7.85 (Very Heavy) | 8.00 (Heavy) | 0.95 (Low Rigidity) |
| Corrosion in Coastal Acids | Zero Corrosion | Rapid Rusting (>1mm/yr) | Pitting & Chloride Attack | Resistant (Low Temp Only) |
| Electrical Conductivity | Non-Conductive (>35 kV) | High (Shock Hazard) | High (Shock Hazard) | Non-Conductive |
| Scrap Theft Value | Zero Scrap Value | High Theft Risk | Extremely High Risk | Zero Scrap Value |
| Expected Service Life | 25 – 35+ Years | 3 – 7 Years | 8 – 12 Years | 10 – 15 Years (UV Prone) |
5. Quality Verification & Testing Protocols
Every composite laminate and process equipment unit fabricated for Vizianagaram undergoes disciplined multi-stage quality assurance testing before dispatch:
- ASTM D2583 Barcol Hardness Verification: Gauging indentation resistance to confirm full polymer cross-linking (achieving >85% of manufacturer resin cure values).
- ASTM D5162 High-Voltage Spark Holiday Testing: Scanning chemical barrier linings with 10,000V–15,000V non-destructive electrostatic probes to verify 100% pinhole-free monolithic continuity.
- ASTM D2584 Glass-to-Resin Ratio Burn-Off Test: Laboratory muffle furnace pyrolysis to confirm structural reinforcement percentages conform precisely to mechanical load calculations.
- Hydrostatic Static Head Pressure Testing: 24-hour full-water containment holding test verifying leak tightness and nozzle stress absorption before shipment.
6. Frequently Asked Engineering Questions • Vizianagaram
FRP structural profiles and gratings are 100% non-magnetic and non-inductive, preventing dangerous eddy current heating and electrocution hazards that occur when steel structures are placed near high-amperage electromagnetic fields.
Our composite ducting is 100% waterproof and mold-resistant, eliminating the rust, rot, and air leakage that plague galvanized sheet metal ducts in humid textile mills.
Yes. Located just 60 km from our Visakhapatnam facility, our engineers provide same-day on-site dimensional surveys and rapid prototype fabrication.
Engineering Standards Compliance Index
All FRP equipment supplied to Vizianagaram is engineered in full conformance with national and international manufacturing codes:
- ASTM D3299: Standard Specification for Filament-Wound Glass-Fiber-Reinforced Thermoset Resin Corrosion-Resistant Tanks.
- ASTM D4097: Standard Specification for Contact-Molded Glass-Fiber-Reinforced Thermoset Resin Chemical-Resistant Tanks.
- ASME RTP-1: Reinforced Thermoset Plastic Corrosion-Resistant Equipment Standard.
- BS 4994: Specification for Design and Construction of Vessels and Tanks in Reinforced Plastics.
- ASTM D2583: Standard Test Method for Indentation Hardness of Rigid Plastics by Barcol Impressor.
- ASTM D5162: Standard Practice for Discontinuity (Holiday) Testing of Nonconductive Protective Coating and Lining Systems.
- IS 6746: Indian Standard Specification for Unsaturated Polyester Resin Systems for Low Pressure FRP Applications.
