- 1. Regional Industrial Ecosystem & Environmental Corrosivity
- 2. Key Industrial Sectors & Engineered Composite Applications
- 3. Chemical Resistance & Polymer Matrix Selection Guide
- 4. Comparative Material Mechanics (FRP vs Steel vs Alloys)
- 5. Quality Verification & Spark Testing Protocols
- 6. Frequently Asked Engineering Questions
- 7. Engineering Standards Compliance Index
1. Regional Industrial Ecosystem & Environmental Corrosivity
Guntur represents one of Andhra Pradesh's primary commercial capitals, globally renowned for chili export, spice oleoresin solvent extraction, tobacco redrying, pesticide manufacturing, and cotton spinning. The solvent extraction and agricultural chemical sectors in Perecherla and Autonagar operate with harsh solvents, organic acids, and corrosive processing steam that degrade conventional steel and painted coatings.
FRP Marine & Industrial Solutions delivers engineered composite process equipment across Guntur. We manufacture flame-retardant solvent extraction vessels, sulfur dioxide exhaust scrubber ducting, anti-slip drainage gratings, and corrosion-proof wastewater neutralizing tanks compliant with ASTM and ASME standards.
Industrial assets in Guntur District face accelerated electrochemical degradation due to atmospheric chlorides, acidic ambient vapors, high ambient temperatures, and continuous processing contact with aggressive chemical media. Conventional mild steel and galvanized structures require repainting every 12–18 months and risk catastrophic structural thinning. Engineered Fiber Reinforced Polymer (FRP) composites eliminate electrochemical corrosion entirely, delivering a maintenance-free service life of 25+ years.
2. Key Industrial Sectors & Engineered Composite Applications
FRP Marine & Industrial Solutions tailors custom composite fabrications to the specific operating demands of local manufacturing facilities, chemical plants, and municipal utilities across Guntur:

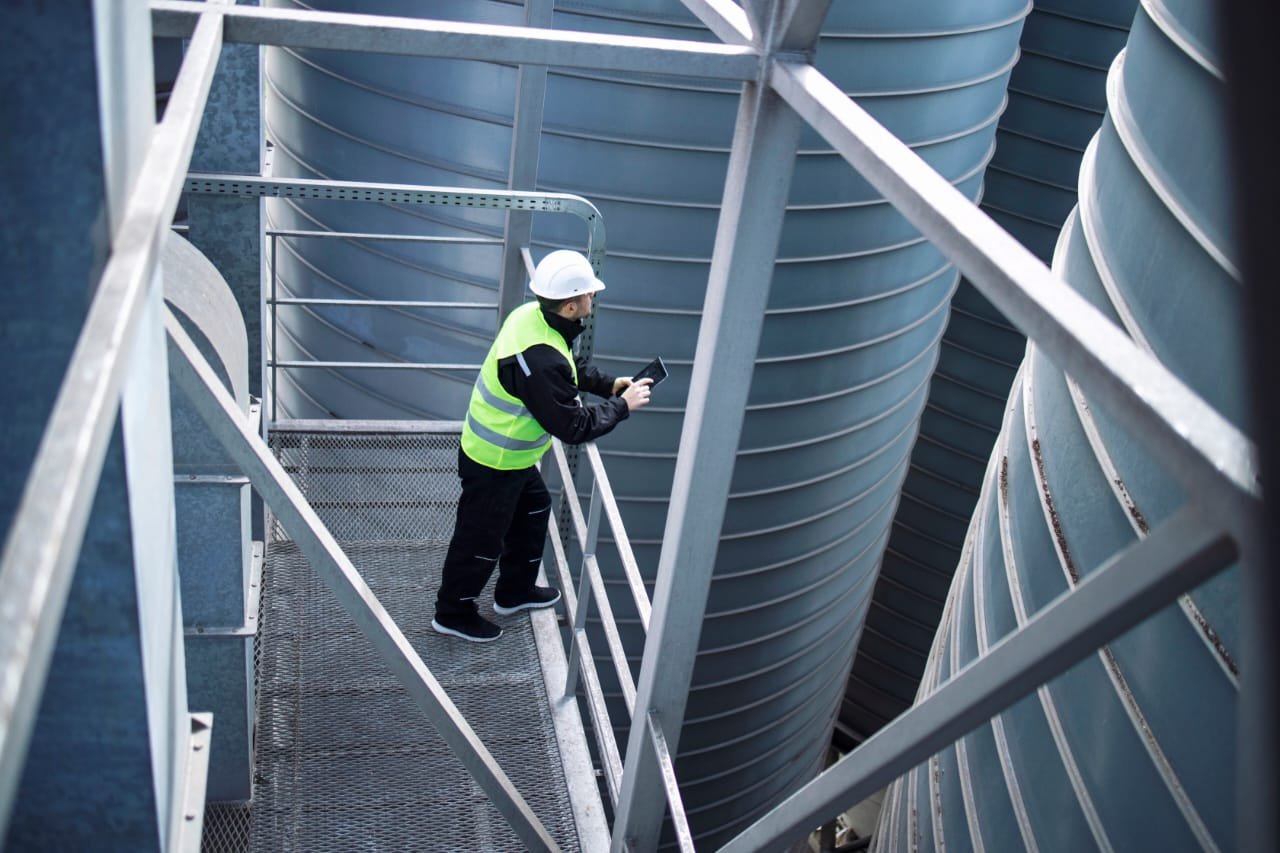

Perecherla Agrochemical & Chemical Cluster
Chemical plants utilize our Vinyl Ester process reactors, neutralization sumps, chlorine scrubber columns, and dual-laminate piping headers engineered for severe chemical duty.
Chili & Spice Oleoresin Solvent Extraction
Spice extractors rely on our food-contact compliant, ethanol-resistant composite mixing vessels, spice washing flumes, and non-sparking floor grating systems.
Tobacco Redrying & Agro-Processing Units
Tobacco processing plants utilize our lightweight, heat-resistant FRP ventilation hoods, moisture-resistant exhaust ducts, and structural caged safety ladders.
3. Chemical Resistance & Polymer Matrix Selection Guide
Proper composite performance depends on matching the optimal thermoset polymer resin matrix to the specific chemical concentration, temperature, and mechanical stress profile of the application:
| Chemical Reagent | Concentration | Max Temp | Recommended Resin Matrix | Corrosion Barrier |
|---|---|---|---|---|
| Hydrochloric Acid (HCl) | Up to 37% | 100°C | Epoxy Novolac Vinyl Ester (Derakane 411/Hetron 922) | 2.5mm + C-Glass Veil |
| Sulfuric Acid (H2SO4) | Up to 70% | 95°C | Bisphenol-A / Vinyl Ester Resin | 2.5mm + Synthetic Veil |
| Sodium Hydroxide (Caustic) | Up to 50% | 85°C | Vinyl Ester / Isophthalic Polyester | 2.5mm + Nexus Synthetic |
| Coastal Seawater / Brine | Hyper-Saline | 80°C | Isophthalic Marine Resin / Gelcoat | 1.5mm + Marine Gelcoat |
| Chlorinated Solvents & VOCs | Process Grade | 115°C | Dual-Laminate (PP/FRP or PVDF/FRP) | 3.0mm Extruded Liner |
4. Comparative Material Mechanics: FRP vs Steel vs Stainless vs HDPE
A rigorous engineering comparison demonstrates why Fiber Reinforced Polymer composites provide the lowest total cost of ownership (TCO) and highest structural reliability in harsh corrosive environments:
| Engineering Property | Engineered FRP | Structural Mild Steel | Stainless Steel 316L | HDPE (High Density Poly) |
|---|---|---|---|---|
| Tensile Strength (MPa) | 180 – 300 MPa | 400 – 500 MPa | 480 – 580 MPa | 20 – 35 MPa |
| Density (g/cm³) | 1.6 – 1.9 (Lightweight) | 7.85 (Very Heavy) | 8.00 (Heavy) | 0.95 (Low Rigidity) |
| Corrosion in Coastal Acids | Zero Corrosion | Rapid Rusting (>1mm/yr) | Pitting & Chloride Attack | Resistant (Low Temp Only) |
| Electrical Conductivity | Non-Conductive (>35 kV) | High (Shock Hazard) | High (Shock Hazard) | Non-Conductive |
| Scrap Theft Value | Zero Scrap Value | High Theft Risk | Extremely High Risk | Zero Scrap Value |
| Expected Service Life | 25 – 35+ Years | 3 – 7 Years | 8 – 12 Years | 10 – 15 Years (UV Prone) |
5. Quality Verification & Testing Protocols
Every composite laminate and process equipment unit fabricated for Guntur undergoes disciplined multi-stage quality assurance testing before dispatch:
- ASTM D2583 Barcol Hardness Verification: Gauging indentation resistance to confirm full polymer cross-linking (achieving >85% of manufacturer resin cure values).
- ASTM D5162 High-Voltage Spark Holiday Testing: Scanning chemical barrier linings with 10,000V–15,000V non-destructive electrostatic probes to verify 100% pinhole-free monolithic continuity.
- ASTM D2584 Glass-to-Resin Ratio Burn-Off Test: Laboratory muffle furnace pyrolysis to confirm structural reinforcement percentages conform precisely to mechanical load calculations.
- Hydrostatic Static Head Pressure Testing: 24-hour full-water containment holding test verifying leak tightness and nozzle stress absorption before shipment.
6. Frequently Asked Engineering Questions • Guntur
Yes. We engineer specialized Epoxy Novolac Vinyl Ester laminates with conductive carbon-veil inner linings to dissipate static electrical charges while providing complete impermeability to organic solvents.
Our tanks are engineered and tested in accordance with ASTM D3299 (filament-wound), ASTM D4097 (contact-molded), and BS 4994, with Barcol hardness verified per ASTM D2583.
Yes. Our composite installation crew handles site surveying, precision cutting around pipe penetrations, and mechanical anchoring using 316 Stainless Steel saddle clips.
Engineering Standards Compliance Index
All FRP equipment supplied to Guntur is engineered in full conformance with national and international manufacturing codes:
- ASTM D3299: Standard Specification for Filament-Wound Glass-Fiber-Reinforced Thermoset Resin Corrosion-Resistant Tanks.
- ASTM D4097: Standard Specification for Contact-Molded Glass-Fiber-Reinforced Thermoset Resin Chemical-Resistant Tanks.
- ASME RTP-1: Reinforced Thermoset Plastic Corrosion-Resistant Equipment Standard.
- BS 4994: Specification for Design and Construction of Vessels and Tanks in Reinforced Plastics.
- ASTM D2583: Standard Test Method for Indentation Hardness of Rigid Plastics by Barcol Impressor.
- ASTM D5162: Standard Practice for Discontinuity (Holiday) Testing of Nonconductive Protective Coating and Lining Systems.
- IS 6746: Indian Standard Specification for Unsaturated Polyester Resin Systems for Low Pressure FRP Applications.
