Eliminating chemical attack, electrochemical oxidation, and structural deterioration in chemical refineries, pharmaceutical synthesis plants, power utilities, and steel mills across Andhra Pradesh.
Industrial processing facilities handling aggressive mineral acids, chlorine gas, solvent vapours, and caustic liquors face constant battles against metallic corrosion. Carbon steel tanks pit and leak within months; stainless steels (SS304/SS316) suffer rapid chloride stress corrosion cracking (SCC); and concrete structures crumble from acid attack.
FRP Marine & Industrial Solutions designs and fabricates thermoset composite equipment that provides 100% rust immunity and extreme chemical resistance. By tailoring the resin matrix (Vinyl Ester, Epoxy Novolac, or Bisphenol-A) and reinforcement architectures to your exact fluid chemistry, temperature, and operating pressure, our equipment delivers 25+ years of trouble-free service life.
.jpeg)
Selecting the engineered resin barrier based on chemical concentration and continuous operating temperatures.
| Chemical Media & Concentration | Isophthalic Polyester | Standard Vinyl Ester | Epoxy Novolac Vinyl Ester | Dual-Laminate (PP/FRP, PVDF/FRP) | Max Continuous Operating Temp |
|---|---|---|---|---|---|
| Hydrochloric Acid (HCl 33%–37%) | Not Recommended | Recommended (A) | Recommended (A) | Recommended (A) | 80°C – 105°C |
| Sulfuric Acid (H2SO4 up to 70%) | Moderate (≤25%) | Recommended (A) | Recommended (A) | Recommended (A) | 70°C – 95°C |
| Sulfuric Acid (H2SO4 70%–98%) | Not Recommended | Not Recommended | Short-term / Ambient | Recommended (PVDF/FRP) | 60°C – 85°C |
| Sodium Hydroxide (NaOH Caustic 20%–50%) | Not Recommended | Recommended (C-Glass Veil) | Recommended (A) | Recommended (PP/FRP) | 65°C – 90°C |
| Sodium Hypochlorite (NaOCl 15% Cl2) | Not Recommended | Recommended (BPO/DMA Cure) | Recommended (A) | Recommended (PVDF/FRP) | 50°C – 65°C |
| Chlorine Gas (Wet / Acidic) | Not Recommended | Recommended (A) | Recommended (A) | Recommended (PVDF/FRP) | 80°C – 100°C |
| Solvents (Toluene, Acetone, DCM, DMF) | Not Recommended | Limited Suitability | Recommended (A) | Recommended (PVDF/ECTFE/FRP) | 60°C – 95°C |
| Seawater & Cooling Brine (High Salinity) | Recommended (A) | Recommended (A) | Recommended (A) | Recommended (A) | 85°C – 110°C |
Engineered to optimize plant uptime, eliminate recurring repair costs, and ensure worker safety.

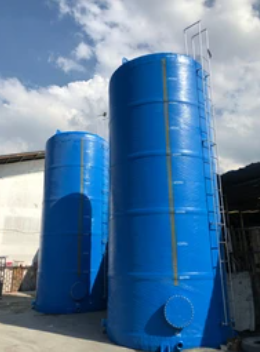

Vertical flat bottom, dished-end, and horizontal cylindrical vessels fabricated to ASTM D3299 and BS 4994 standards with specialized chemical corrosion barriers and integral hold-down anchor lugs.
Molded and pultruded quartz-grit gratings for chemical neutralizing pit walkways, electroplating floors, and cooling tower platforms where acids destroy steel gratings.
Corrosive gas absorption columns, packed bed towers, mist eliminator housings, and large-diameter chimney ducting for chemical and pharmaceutical air pollution control.
Filament wound circulating water (CW) header pipes, riser branches, and spray manifolds for thermal power stations and metallurgical cooling circuits.
Split-mould lightweight composite covers for rotating slurry pumps, conveyor drive belts, centrifuge housings, and motor rain canopies.
Restoring damaged concrete effluent pits, neutralizing sumps, and steel pickling tanks on-site with multi-ply seamless Vinyl Ester composite barriers.
Headquartered in Visakhapatnam, we provide rapid response, technical drawing reviews, and on-site deployment across all AP industrial clusters.
Supplying bulk drug synthesis solvent tanks, cleanroom drainage channels, acid dilution sumps, and pump splash guards across JNPCL Pharma City Parawada and Gajuwaka.
Visakhapatnam DetailsHeavy machinery covers, NTTPS thermal power cooling water headers, transformer yard gratings, and industrial chemical storage vessels.
Vijayawada DetailsPhosphoric acid storage vessels, ammonia scrubber ducting, marine fertilizer berth gratings, and coastal seawater intake pipes.
Kakinada DetailsAn encyclopedic technical manual on heavy industrial chemical containment, continuous pickling acid baths, chlorine cell covers, and cooling water circuits.
In hot-rolled steel coil manufacturing and continuous wire pickling lines (such as at Visakhapatnam Steel Plant and Autonagar steel mills), metal coils pass through 15–20% Hydrochloric Acid (HCl) or Sulfuric Acid (H2SO4) heated up to 85°C. Conventional rubber-lined carbon steel tanks suffer from rubber debonding, acid seepage through pinholes, and catastrophic shell corrosion.
We engineer monolithic Bisphenol-A and Novolac Vinyl Ester pickling tanks with multi-layer C-glass chemical barriers, reinforced with external pultruded structural steel I-beam stiffeners encased in seamless composite laminates. This delivers zero-leakage acid containment with an expected service life exceeding 25 years.
Chlorine generation cells produce saturated wet chlorine gas (Cl2), sodium hypochlorite, and caustic soda at 85°C. Metals quickly succumb to severe pitting corrosion, while non-stabilized plastics crack. Our cell covers and headers are fabricated using brominated vinyl ester resins with antimony trioxide synergists, providing high fire safety, zero electrical conductivity, and complete resistance to wet halogen oxidizers.
Industrial acid gas scrubbers in pharmaceutical and chemical manufacturing neutralize acidic fumes (HCl, SO2, NOx, Cl2) using circulating caustic wash. We design and fabricate vertical packed bed scrubber towers (diameters from 600mm to 3500mm), spray header manifolds, and chevron demister blade packs engineered in compliance with BS 4994 / ASME RTP-1.
In thermal and nuclear power station cooling towers (e.g. NTPC Simhadri, Dr. NTTPS Vijayawada, Krishnapatnam), high-volume water distribution headers operate continuously under biological growth, chlorine dosing, and high dissolved solids. Filament-wound FRP piping headers with integrated spray branch pipes eliminate scaling, reduce pump friction losses by 20%, and never corrode.
Detailed chemical attack mechanics, dual-laminate thermoplastic barriers, and packed scrubber design equations.
Understanding why specific thermoset resins survive aggressive chemical reagents requires analyzing chemical attack mechanisms at the molecular level:
In chemical and fertilizer plants, wet scrubber columns neutralize acidic and toxic gases (HCl, SO2, Cl2, NH3, H2S) before atmospheric discharge. We engineer packed bed and mist eliminator scrubber columns complying with BS 4994:
For chemical process applications where temperatures exceed 100°C in the presence of aggressive mixed solvents (such as Toluene, DMF, DCM in bulk pharma synthesis), pure thermoset resins may experience surface plasticization. We engineer Dual-Laminate Vessels combining a 3.0 mm to 5.0 mm extruded thermoplastic inner liner (Polypropylene PP, Polyvinylidene Fluoride PVDF, or ECTFE Halar) backed with a high-strength filament-wound FRP structural shell.
The thermoplastic sheet is mechanically bonded to the structural FRP laminate using an embedded polyester fabric or glass knitted backing, delivering the ultimate combination of universal chemical resistance and high structural pressure capability.
Environmental compliance standards, chemical spill containment sizing, and toxic gas emission control.
Under Indian environmental regulations (CPCB and APPCB guidelines), chemical storage tank farms containing hazardous acids, caustics, and toxic reagents must feature secondary containment dykes sized to hold 110% of the single largest vessel capacity or 25% of the total aggregate tank farm volume, whichever is greater.
Unprotected concrete dykes and masonry bund walls develop shrinkage micro-cracks and suffer rapid acid erosion when spills occur. Our seamless multi-layer Vinyl Ester fiberglass lining systems seal concrete floors and dyke walls with a monolithic, elastomeric chemical barrier, guaranteeing 100% environmental compliance and zero soil or groundwater contamination.
In steel pickling lines (such as at RINL Vizag Steel and cold-rolling processing facilities), hot hydrochloric acid (HCl 15%–20% at 75°C–85°C) generates dense corrosive acid vapors that destroy plant roofing, overhead cranes, and structural steel trusses.
We manufacture custom heavy-duty FRP pickling tank covers with liquid lip seals, integrated inspection windows, and suction takeoffs connected to filament-wound FRP exhaust ducts and acid scrubbing systems. This captures 99.8% of acid vapors at the source, creating a safe, non-corrosive working environment inside the plant building.
Industrial cooling towers handling recirculating water with high cycles of concentration (CoC) suffer from bio-slimes, algae growth, and chemical scaling that severely restricts water flow. Our smooth-bore filament wound cooling tower headers and lateral distribution pipes with non-clogging target nozzles maintain constant hydraulic pressure and eliminate scale buildup for decades.
Deep technical analysis of chemical attack kinetics, gas absorption columns, and wastewater corrosion control.
In industrial Effluent Treatment Plants (ETP) and municipal Sewage Treatment Plants (STP), anaerobic bacteria metabolize organic sulfur compounds into Hydrogen Sulfide gas (H2S). When H2S dissolves in moisture on concrete tank walls above the water line, Thiobacillus bacteria oxidize it into sulfuric acid (H2SO4), causing severe biogenic concrete corrosion.
Our vinyl ester composite clarifier weirs, scum baffles, and monolithic sump relining systems are 100% immune to biological sulfuric acid attack, ensuring leak-free effluent processing for over 30 years without concrete degradation.
In thermal power stations (such as NTTPS Vijayawada and Simhadri NTPC), wet limestone FGD systems scrub sulfur dioxide from flue gases, creating a corrosive slurry of calcium sulfite, gypsum, chlorides, and sulfuric acid at temperatures between 55°C and 85°C.
We manufacture heavy-duty filament wound FGD spray headers, slurry piping, and vinyl ester mist eliminators that withstand abrasive slurry velocities up to 3.5 m/s with integrated silicon carbide (SiC) abrasion-resistant inner layers.
Complete chemical process design, hazardous reagent handling, dual-laminate fusion, and plant safety.
In hot-dip galvanizing, continuous coil processing, and wire drawing plants across Andhra Pradesh, descaling steel coils in concentrated Hydrochloric Acid (HCl 15%–20% at 75°C–85°C) produces dense acid mists and corrosive fumes that rapidly destroy concrete roofing, overhead cranes, and ventilation ductwork.
Our turnkey composite pickling fume extraction packages feature:
Manufacturing and handling Sodium Hypochlorite (NaOCl 15%), wet chlorine gas (Cl2), and concentrated Caustic Soda (NaOH 50%) presents one of the most severe corrosion challenges in chemical engineering. Standard metals (even titanium) can ignite in dry chlorine gas, while stainless steel suffers catastrophic stress corrosion cracking in chlorides.
We formulate dedicated Brominated Vinyl Ester and Pure Bisphenol-A Resin Matrices cured exclusively with cobalt naphthenate promoters and MEKP initiators (completely avoiding amine accelerators that cause resin discoloration and catalytic decomposition of hypochlorite). This guarantees 100% leak-proof chemical storage and piping over 25+ years.
