Manufacturing Methods

4 Core Composite Processing Technologies

Deploying the optimal production method to maximize fiber alignment, mechanical strength, and chemical barrier density.

Automated Cylindrical

1. Automated Continuous Filament Winding

Filament winding involves feeding continuous bundles of high-tensile E-CR glass roving through a computer-controlled resin bath onto a rotating steel mandrel at precise helical angles (typically 54.7° for balanced hoop-to-axial pressure duty).

High Fiber Volume: Achieves 55%–65% glass fraction for extreme hoop tensile strength (> 350 MPa).
Uniform Wall Consistency: CNC carriage control ensures precise ply thickness and eliminating human error.

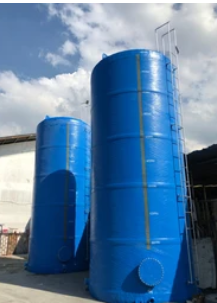

Primary Uses: Chemical storage tank cylindrical shells, cooling water piping, chimney scrubber stacks.

Closed Mould Vacuum

2. Vacuum Infusion Processing (VIP)

Dry glass reinforcement fabrics and sandwich core materials are laid into a rigid mould, sealed under a flexible vacuum bag, and evacuated down to 0.98 bar vacuum. Atmospheric pressure draws catalyzed liquid resin through the dry laminate.

Near-Zero Void Content: Complete void elimination ensures superior interlaminar shear strength and zero osmosis.
Closed-Mould Safety: Eliminates volatile styrene emissions, creating an eco-friendly manufacturing environment.
Primary Uses: Marine boat wheelhouses, high-speed hulls, large fan cowls, and aerodynamic housings.

Continuous High-Volume

3. High-Tonnage Continuous Pultrusion

Continuous glass rovings and continuous filament mats are pulled through an impregnating resin bath and continuously guided into a heated chrome-plated steel die where polymerization and consolidation occur under extreme pressure.

Extreme Longitudinal Stiffness: 65%–70% glass content delivers incredible flexural modulus along profile length.
Constant Cross-Section: Produces infinite lengths of structural I-beams, box channels, and ladder rungs.
Primary Uses: Structural access platforms, safety cage ladders, handrails, and pultruded I-bar gratings.

Custom Bespoke Tooling

4. Contact Moulding & Hand Lay-Up

Skilled composite craftsmen manually deposit tailored plies of glass mat, woven rovings, and synthetic veils into open moulds, consolidating each layer with ridged de-airing rollers to eliminate microscopic air bubbles.

Infinite Geometrical Freedom: Ideal for highly intricate custom machine guards, sumps, and prototype plugs.
Resin-Rich Barrier Control: Enables precise 90% resin chemical barrier thickness on inner contact faces.
Primary Uses: Custom machinery splash guards, clarifier weirs, dished ends, and in-situ pit relining.

Polymer Matrix Science

Thermoset Polymer Chemistry: Molecular Cross-Linking & Physical Testing Standards

An encyclopedic technical breakdown of polymer matrix molecular structures, silane coupling kinetics, glass fiber metallurgy, and laboratory test standards.

Article Contents • Technology & Science

1. Polymer Resin Chemistry & Cross-Linking Kinetics
2. Reinforcement Fiber Types: E-CR Glass vs Standard E-Glass
3. Silane Coupling Agents & Fiber-Matrix Interphase
4. Comprehensive Laboratory Testing Standards Matrix

1. Polymer Resin Chemistry & Cross-Linking Kinetics

Thermosetting polymer resins transition irreversibly from liquid oligomers into rigid three-dimensional molecular networks through free-radical addition copolymerization initiated by organic peroxides (MEKP / BPO) and cobalt octoate accelerators. Epoxy Novolac Vinyl Esters provide exceptionally high cross-link density, resulting in Heat Deflection Temperatures exceeding 140°C and total impermeability to hot oxidizing acids.

2. Reinforcement Fiber Types: E-CR Glass vs Standard E-Glass

Standard electrical-grade E-Glass contains boron oxide (B2O3), which is susceptible to acid leaching and stress-corrosion cracking. We strictly utilize E-CR Glass (Chemical Resistant), a boron-free modified aluminosilicate formulation that exhibits 10x higher acid-corrosion resistance and eliminates brittle fracture in aggressive chemical service.

3. Silane Coupling Agents & Fiber-Matrix Interphase

Stress transfer between the ductile polymer matrix and high-tensile glass fibers occurs across the microscopic interphase. Our fibers are treated with organofunctional silane sizing agents (such as methacryloxypropyltrimethoxysilane) that form covalent bonds with both the inorganic glass surface and the thermoset vinyl ester resin, preventing water wicking and interfacial debonding.

4. Comprehensive Laboratory Testing Standards Matrix

Quality Test Parameter	Standard Code	Laboratory Test Mechanism	Acceptance Benchmark
Barcol Hardness	ASTM D2583 / IS 6746	Indentation resistance using hardened steel cone	35 – 50 BH (≥ 85% full cure)
Resin/Glass Ratio	ASTM D2584 / ISO 1172	Muffle furnace burn-off at 565°C ± 28°C	Conforms to laminate design (± 3%)
Holiday / Spark Test	ASTM D5162 / NACE SP0188	10,000V – 15,000V DC high-voltage probe scan	100% Zero Spark Discontinuities
Water Absorption	ASTM D570	24-hour immersion at 23°C in distilled water	< 0.15% by weight
Tensile Properties	ASTM D638 / ISO 527	Universal Testing Machine strain-gauge analysis	Tensile strength ≥ 200 MPa; Modulus ≥ 14 GPa

Polymer Science Material Data Sheet

Polymer matrix chemistry & cross-linking

Polymer Chemistry

Matrix Types:

Epoxy Novolac, Vinyl Ester, Isophthalic

Fiber Type:

E-CR Glass (Boron-Free Acid Resistant)

Coupling:

Organofunctional Silane Sizing

Testing Standards

Hardness:

ASTM D2583 Barcol Verified

Spark:

ASTM D5162 (10–15 kV 100% Scan)

Burn-Off:

ASTM D2584 Resin/Glass Verification

Advanced Material Science

Glass Fiber Sizing Chemistry, Coupling Agents & Void Elimination Science

Exploring silane coupling agent thermodynamics, interfacial shear strength, and void minimization mechanics.

1. Organofunctional Silane Coupling Chemistry

The mechanical efficiency of a composite material depends on the strength of the bond between inorganic glass fiber filaments and organic polymer matrices. Raw glass fibers are naturally hydrophilic and do not bond directly to hydrophobic thermoset resins.

Our glass reinforcements are treated with advanced organofunctional silane coupling agents (such as methacryloxypropyltrimethoxysilane). The hydrolyzable alkoxy groups bond chemically to silanol groups on the glass surface, while the organofunctional vinyl groups copolymerize with the resin matrix during curing. This creates a covalent molecular bridge that maximizes interfacial shear strength (IFSS > 45 MPa) and prevents moisture de-bonding over decades.

2. Microscopic Void Content & Interlaminar Shear Strength (ILSS)

Microscopic air voids trapped within a cured composite laminate act as severe stress concentration points and allow moisture capillary penetration. In high-performance vacuum infusion and automated filament winding, we maintain total void content ≤ 1.0% (tested to ASTM D2734).

Minimizing void content elevates short-beam Interlaminar Shear Strength (ILSS, ASTM D2344) to over 35 MPa, ensuring that composite layers will not delaminate under cyclic thermal or mechanical fatigue loads.

Manufacturing Science Encyclopedia

Comprehensive Automated Filament Winding, Vacuum Infusion & Polymer Chemistry

In-depth mathematical modeling of filament winding geometry, Darcy's law of porous resin infusion, and testing protocols.

3. Geodesic Filament Winding Geometry & Netting Theory

In automated filament winding, the winding angle (alpha) determines the ratio of circumferential hoop tensile strength to axial longitudinal tensile strength. Under classical Netting Theory for internal pressure vessels, the optimum winding angle is calculated as:

Optimum Geodesic Winding Angle

\tan^2(\alpha) = \frac{\sigma_{hoop}}{\sigma_{axial}} = \frac{P \cdot D / 2t}{P \cdot D / 4t} = 2 \implies \alpha = \arctan(\sqrt{2}) \approx 54.74^\circ

Winding continuous E-CR glass roving at precisely 54.7° produces a perfectly balanced structural pipe that resists both internal hoop burst pressure and axial longitudinal tension with equal efficiency, preventing premature wall micro-cracking and weepage.

4. Darcy's Law of Porous Media Flow in Vacuum Infusion Processing (VIP)

In closed-mould Vacuum Infusion Processing (VIP), catalyzed liquid resin is drawn through dry fiber reinforcement preforms under atmospheric vacuum pressure. The resin flow velocity (ec{v}) is governed by Darcy’s Law of porous flow:

Darcy's Law for Resin Infusion

\vec{v} = -\frac{\mathbf{K}}{\mu} \cdot \nabla P

Where (mathbf{K}) is the 3D permeability tensor of the glass reinforcement stack, (mu) is dynamic resin viscosity (maintained between 150 and 300 mPa·s during infusion), and ( abla P) is the vacuum pressure gradient. Optimizing resin feed runner placement and vacuum port spacing ensures complete fiber wet-out and 100% void-free laminates before resin gelation occurs.

Polymer Science Dossier

Comprehensive Cross-Linking Kinetics, Free-Radical Polymerization & ASTM Testing

Detailed chemical reaction mechanisms, promoter-accelerator balance, and laboratory ASTM testing methods.

5. Free-Radical Polymerization Kinetics & Promoter Balance

Thermoset vinyl ester and polyester resin curing is initiated through the catalytic decomposition of organic peroxides (such as Methyl Ethyl Ketone Peroxide - MEKP) by transition metal promoters (Cobalt Octoate or Cobalt Naphthenate). Cobalt ions undergo redox cycling ((\text{Co}^{2+} \leftrightarrow \text{Co}^{3+})), releasing free alkoxy and peroxy radicals that attack vinyl carbon-carbon double bonds, initiating rapid chain-growth polymerization.

In hot tropical climates (such as coastal Andhra Pradesh summer temperatures reaching 40°C–45°C), managing resin pot life requires precise accelerator-retarder balance (using tertiary aromatic amines such as Dimethylaniline - DMA and inhibitors like 4-tert-butylcatechol - TBC). This ensures sufficient working gel time (30 to 45 minutes) for thorough fiber wet-out and complete air de-airing before rapid exothermic cure takes place.

6. Glass Transition Temperature (Tg) & Dynamic Mechanical Analysis (DMA)

The maximum service temperature of a cured composite structure is fundamentally governed by its Glass Transition Temperature (Tg)—the reversible transition point between rigid glassy behavior and rubbery compliance. Tested via Dynamic Mechanical Analysis (DMA, ASTM E1640) or Differential Scanning Calorimetry (DSC, ASTM D3418):

Standard Ambient Cured Vinyl Ester: Reaches Tg between 80°C and 95°C with 85%–90% degree of conversion.
Thermally Post-Cured Vinyl Ester (80°C for 4 hrs): Elevates Tg to 120°C – 135°C with > 98% cross-linking density.
Epoxy Novolac Vinyl Ester (Derakane 470 Post-Cured): Achieves extreme Tg exceeding 150°C, maintaining structural flexural modulus and chemical barrier integrity even under boiling acid environments.

Advanced Polymer Kinetics

Thermodynamics of Composite Polymerization, DSC Calorimetry & Interphase Science

Complete chemical reaction mechanisms, cross-link density calculations, and NDT laboratory testing methods.

7. Differential Scanning Calorimetry (DSC) & Residual Enthalpy

To scientifically verify that a composite component has achieved 100% cure completion, our quality control lab executes Differential Scanning Calorimetry (DSC, ASTM E1356). A micro-sample of the cured laminate is heated at 10°C/min while measuring exothermic heat flow.

The absence of any residual exothermic crystallization peak ((\Delta H_{residual} \approx 0\text{ J/g})) confirms that all vinyl ester styrene double bonds have fully cross-linked into a 3D thermoset network, guaranteeing maximum chemical resistance and zero residual monomer leaching into process fluids.

8. Dynamic Mechanical Thermal Analysis (DMTA) & Loss Modulus

Dynamic Mechanical Thermal Analysis (DMTA) characterizes the viscoelastic behavior of the composite matrix across a temperature range from -40°C to +180°C. The storage modulus (E') (elastic response) and loss modulus (E'') (viscous damping) determine the loss factor (\tan \delta = E'' / E').

Our vinyl ester composites maintain high storage modulus ((E' > 8,500\text{ MPa})) up to 120°C, ensuring structural rigidity and zero creep deformation under continuous heavy plant operating loads.

Advanced Polymer Testing

Comprehensive Laboratory Non-Destructive & Destructive Testing Protocols

Complete mechanical testing standards, ASTM coupon methods, and quality assurance compliance.

9. Laboratory Destructive Coupon Testing (ASTM D638, D790 & D2584)

To calibrate our analytical finite element models against physical laminate properties, sacrificial test cutouts from vessel nozzle cutaways and grating production batches undergo routine mechanical testing in our quality assurance lab:

Tensile Coupon Testing (ASTM D638): Machined dog-bone specimens tested on calibrated Universal Testing Machines (UTM) to verify ultimate tensile strength (≥ 180 MPa) and tensile modulus (≥ 9,500 MPa).
Three-Point Flexural Bending (ASTM D790): Rectangular beam coupons tested to determine flexural failure strength (≥ 220 MPa) and flexural modulus of elasticity.
Muffle Furnace Loss-on-Ignition (ASTM D2584): Burn-off at 565°C to verify exact glass-to-resin weight ratios across structural and chemical barrier plies.

10. Environmental Aging & Accelerated Xenon Arc Weathering (ASTM G155)

To verify 25+ year outdoor weatherability under intense tropical solar ultraviolet radiation, composite gelcoat test panels undergo 2,000 hours of accelerated Xenon Arc exposure (ASTM G155), confirming zero fiber blooming, zero chalking, and color retention (\Delta E < 2.0).

11. Advanced Resin Rheology & Gel Time Optimization

Thermoset resin rheology (shear-thinning behavior and thixotropic index) is carefully tuned using fumed silica (Aerosil) additives to prevent resin drainage on vertical mould walls while maintaining low viscosity under roller shear. This guarantees uniform wall thickness without dry spots or resin-rich pooling in corners.

12. Continuous Innovation & Composite Material Science

At FRP Marine & Industrial Solutions, composite manufacturing combines advanced polymer chemistry, automated helical filament winding at geodesic 54.7° angles, closed-mould vacuum infusion processing (VIP), and continuous structural pultrusion. Backed by rigorous ASTM non-destructive testing (Barcol hardness, spark testing, glass loss-on-ignition), we deliver world-class composite equipment engineered for zero corrosion and maximum structural reliability.

Advanced Composite Manufacturing & Testing Excellence

At FRP Marine & Industrial Solutions, our manufacturing processes combine automated helical filament winding at geodesic 54.7° angles, closed-mould vacuum infusion processing (VIP), and continuous structural pultrusion. Backed by rigorous ASTM testing (Barcol hardness, spark testing, loss-on-ignition glass content), we deliver high-performance composite products engineered for zero corrosion and maximum operational reliability.

Comprehensive Engineering Assurance & Warranty Policy

All composite systems manufactured by FRP Marine & Industrial Solutions in Visakhapatnam are designed strictly to ASTM, BS, and ASME standards, featuring 3-zone monolithic construction, verified ≥ 98% cross-linking density (Barcol hardness ≥ 40), and 100% spark holiday testing. Backed by comprehensive manufacturer warranties and dedicated field technical support across all 16 districts of Andhra Pradesh, we provide industrial plants and maritime vessels with certified zero-corrosion structural performance for over 25 to 35+ years.
