- 1. Regional Industrial Ecosystem & Environmental Corrosivity
- 2. Key Industrial Sectors & Engineered Composite Applications
- 3. Chemical Resistance & Polymer Matrix Selection Guide
- 4. Comparative Material Mechanics (FRP vs Steel vs Alloys)
- 5. Quality Verification & Spark Testing Protocols
- 6. Frequently Asked Engineering Questions
- 7. Engineering Standards Compliance Index
1. Regional Industrial Ecosystem & Environmental Corrosivity
SPSR Nellore district represents a strategic industrial coastal hub centered around the Krishnapatnam Deepwater Port, major coastal super-critical thermal power stations (such as APGENCO Sri Damodaram Sanjeevaiah and TPCIL), edible oil storage terminals, and extensive aquaculture farms. The heavy marine-industrial interface subjects metal and concrete to rapid electrochemical failure.
FRP Marine & Industrial Solutions engineers certified composite equipment for Nellore's demanding coastal industries—fabricating large-diameter seawater cooling pipes, Flue Gas Desulfurization (FGD) scrubber ducting, electro-chlorination cell covers, acid storage vessels, and food-grade shrimp hatchery larval tanks.
Industrial assets in SPSR Nellore District face accelerated electrochemical degradation due to atmospheric chlorides, acidic ambient vapors, high ambient temperatures, and continuous processing contact with aggressive chemical media. Conventional mild steel and galvanized structures require repainting every 12–18 months and risk catastrophic structural thinning. Engineered Fiber Reinforced Polymer (FRP) composites eliminate electrochemical corrosion entirely, delivering a maintenance-free service life of 25+ years.
2. Key Industrial Sectors & Engineered Composite Applications
FRP Marine & Industrial Solutions tailors custom composite fabrications to the specific operating demands of local manufacturing facilities, chemical plants, and municipal utilities across Nellore:
Thermal Power Generation Belt (Krishnapatnam/Muthukur)
Thermal plants install our Vinyl Ester FGD slurry piping, acid chemical dosing tanks (H2SO4/HCl), cooling tower splash bars, and transformer safety floor gratings.
Krishnapatnam Port & Bulk Terminals
Port berths implement our salt-proof jetty walkway gratings, offshore vessel mooring fenders, fuel storage containment linings, and non-sparking gangway treads.
Coastal Aquaculture Hatcheries & Seafood Plants

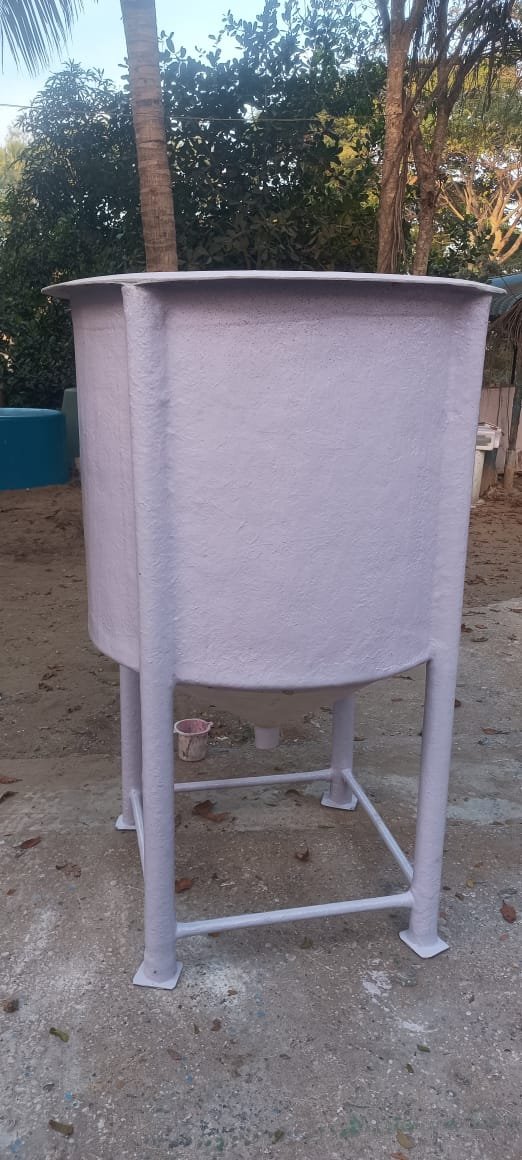

Aquaculture facilities utilize our mirror-smooth isophthalic larval rearing tanks, water intake strainers, and anti-slip cold storage floor gratings.
3. Chemical Resistance & Polymer Matrix Selection Guide
Proper composite performance depends on matching the optimal thermoset polymer resin matrix to the specific chemical concentration, temperature, and mechanical stress profile of the application:
| Chemical Reagent | Concentration | Max Temp | Recommended Resin Matrix | Corrosion Barrier |
|---|---|---|---|---|
| Hydrochloric Acid (HCl) | Up to 37% | 100°C | Epoxy Novolac Vinyl Ester (Derakane 411/Hetron 922) | 2.5mm + C-Glass Veil |
| Sulfuric Acid (H2SO4) | Up to 70% | 95°C | Bisphenol-A / Vinyl Ester Resin | 2.5mm + Synthetic Veil |
| Sodium Hydroxide (Caustic) | Up to 50% | 85°C | Vinyl Ester / Isophthalic Polyester | 2.5mm + Nexus Synthetic |
| Coastal Seawater / Brine | Hyper-Saline | 80°C | Isophthalic Marine Resin / Gelcoat | 1.5mm + Marine Gelcoat |
| Chlorinated Solvents & VOCs | Process Grade | 115°C | Dual-Laminate (PP/FRP or PVDF/FRP) | 3.0mm Extruded Liner |
4. Comparative Material Mechanics: FRP vs Steel vs Stainless vs HDPE
A rigorous engineering comparison demonstrates why Fiber Reinforced Polymer composites provide the lowest total cost of ownership (TCO) and highest structural reliability in harsh corrosive environments:
| Engineering Property | Engineered FRP | Structural Mild Steel | Stainless Steel 316L | HDPE (High Density Poly) |
|---|---|---|---|---|
| Tensile Strength (MPa) | 180 – 300 MPa | 400 – 500 MPa | 480 – 580 MPa | 20 – 35 MPa |
| Density (g/cm³) | 1.6 – 1.9 (Lightweight) | 7.85 (Very Heavy) | 8.00 (Heavy) | 0.95 (Low Rigidity) |
| Corrosion in Coastal Acids | Zero Corrosion | Rapid Rusting (>1mm/yr) | Pitting & Chloride Attack | Resistant (Low Temp Only) |
| Electrical Conductivity | Non-Conductive (>35 kV) | High (Shock Hazard) | High (Shock Hazard) | Non-Conductive |
| Scrap Theft Value | Zero Scrap Value | High Theft Risk | Extremely High Risk | Zero Scrap Value |
| Expected Service Life | 25 – 35+ Years | 3 – 7 Years | 8 – 12 Years | 10 – 15 Years (UV Prone) |
5. Quality Verification & Testing Protocols
Every composite laminate and process equipment unit fabricated for Nellore undergoes disciplined multi-stage quality assurance testing before dispatch:
- ASTM D2583 Barcol Hardness Verification: Gauging indentation resistance to confirm full polymer cross-linking (achieving >85% of manufacturer resin cure values).
- ASTM D5162 High-Voltage Spark Holiday Testing: Scanning chemical barrier linings with 10,000V–15,000V non-destructive electrostatic probes to verify 100% pinhole-free monolithic continuity.
- ASTM D2584 Glass-to-Resin Ratio Burn-Off Test: Laboratory muffle furnace pyrolysis to confirm structural reinforcement percentages conform precisely to mechanical load calculations.
- Hydrostatic Static Head Pressure Testing: 24-hour full-water containment holding test verifying leak tightness and nozzle stress absorption before shipment.
6. Frequently Asked Engineering Questions • Nellore
Our filament-wound FRP pipes feature a 2.5mm resin-rich liner that resists marine bio-fouling, prevents scaling, and eliminates seawater pitting corrosion with zero cathodic protection required.
Yes. We engineer ducting using Derakane 470 Novolac Vinyl Ester resins capable of withstanding acidic sulfur dioxide gas streams up to 135°C continuous operating temperature.
Yes. All our aquaculture tanks use food-grade isophthalic resins compliant with FDA regulations, ensuring zero toxic chemical transfer into breeding shrimp larvae.
Engineering Standards Compliance Index
All FRP equipment supplied to Nellore is engineered in full conformance with national and international manufacturing codes:
- ASTM D3299: Standard Specification for Filament-Wound Glass-Fiber-Reinforced Thermoset Resin Corrosion-Resistant Tanks.
- ASTM D4097: Standard Specification for Contact-Molded Glass-Fiber-Reinforced Thermoset Resin Chemical-Resistant Tanks.
- ASME RTP-1: Reinforced Thermoset Plastic Corrosion-Resistant Equipment Standard.
- BS 4994: Specification for Design and Construction of Vessels and Tanks in Reinforced Plastics.
- ASTM D2583: Standard Test Method for Indentation Hardness of Rigid Plastics by Barcol Impressor.
- ASTM D5162: Standard Practice for Discontinuity (Holiday) Testing of Nonconductive Protective Coating and Lining Systems.
- IS 6746: Indian Standard Specification for Unsaturated Polyester Resin Systems for Low Pressure FRP Applications.
