Engineered FRP Project Portfolio & Gallery

Real-world engineering installations delivered across chemical plants, thermal power stations, maritime ports, and manufacturing facilities throughout Andhra Pradesh.

Request Project Proposal Call +91 94907 49330
Case Studies

Featured Composite Installations

Examining problem statements, engineered composite solutions, material specifications, and verified operational outcomes.

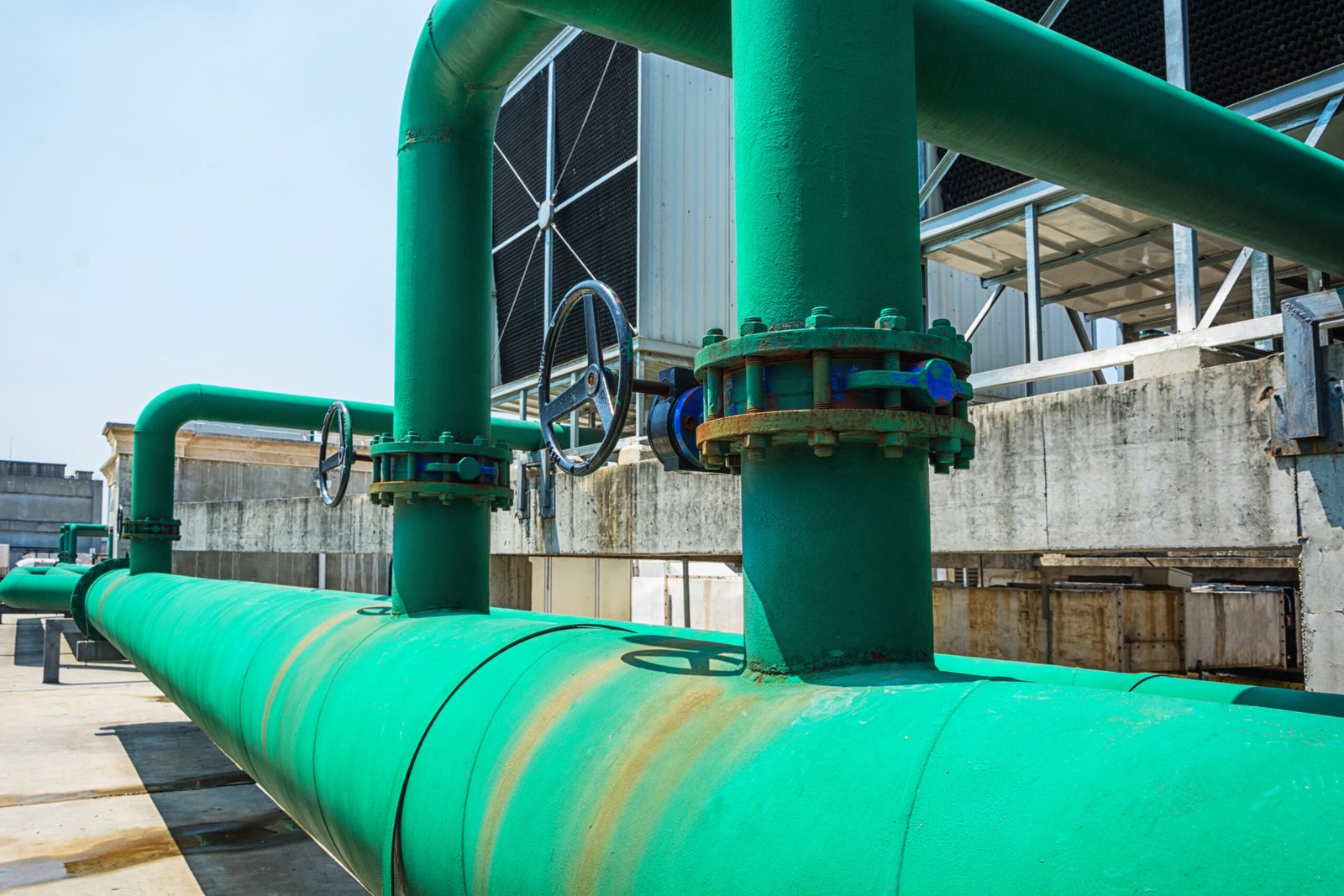

FRP industrial cooling tower piping system
Industrial Piping

Power Plant Cooling Header System

Problem: Severe galvanic corrosion and internal biological scaling on mild steel cooling tower distribution piping.
Solution: Custom filament wound DN800 composite header with integrated DN200 flanged branch takeoffs.
Outcome: 100% rust immunity, Hazen-Williams C=150 reduced pumping head, zero maintenance over 8+ years.

Discuss Similar Scope

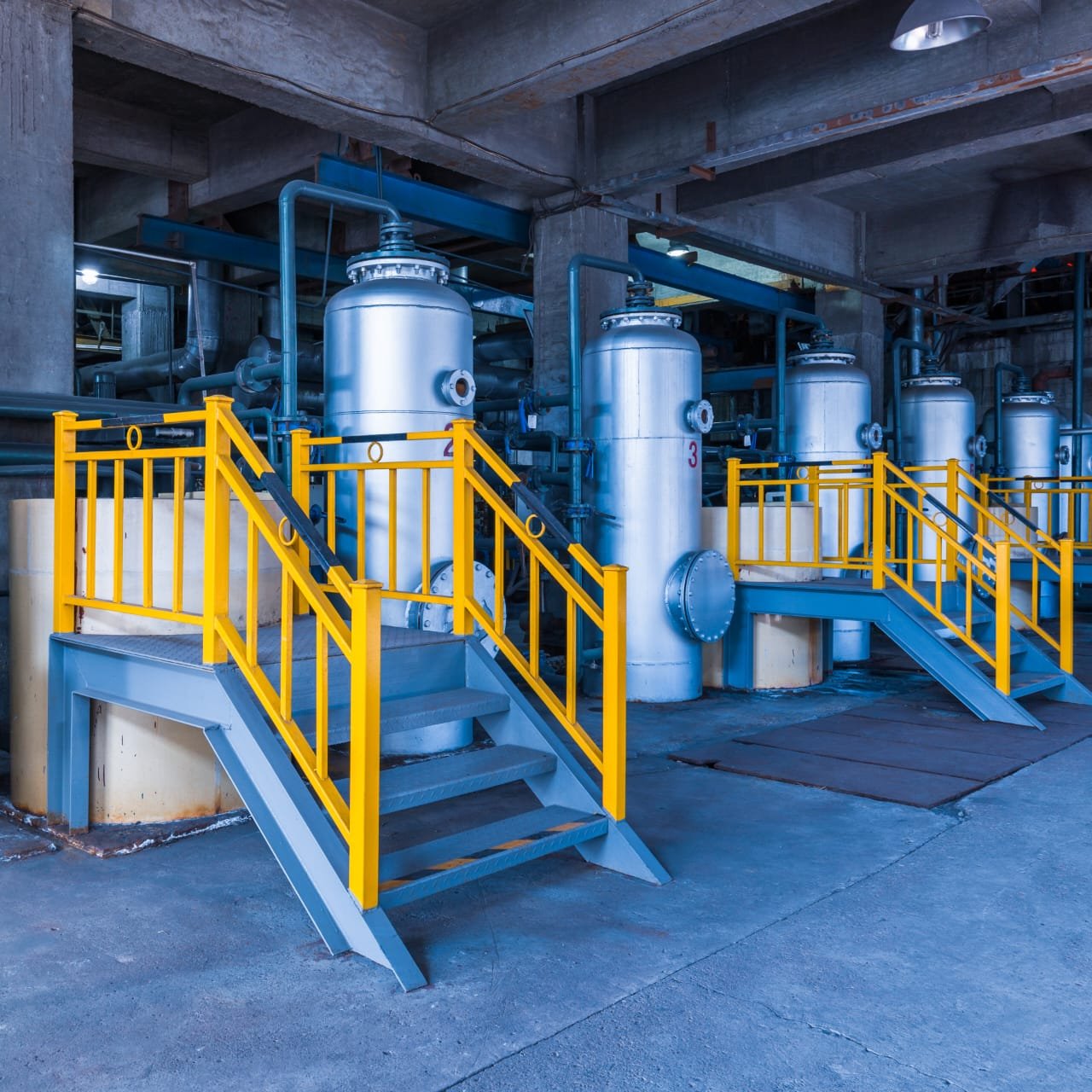

FRP chemical storage tank fabrication in Visakhapatnam
Chemical Storage

Hydrochloric Acid (HCl 33%) Storage Vessel

Problem: Rubber-lined steel tank developed pinhole leaks, corroding the outer steel casing and causing environmental risk.
Solution: 25 KL vertical flat-bottom tank built to ASTM D3299 with Vinyl Ester Novolac multi-veil corrosion barrier.
Outcome: 100% leak-proof performance, verified Barcol hardness 44, eliminating emergency repair shutdowns.

Discuss Similar Scope
FRP marine boat wheelhouse cabin structure
Marine Composites

Coastal Patrol Boat Wheelhouse & Console

Problem: Heavy aluminum wheelhouse caused top-heavy rolling and suffered localized salt pitting around welded seams.
Solution: Vacuum infused composite sandwich wheelhouse with high-density PVC foam core and isophthalic marine gelcoat.
Outcome: 52% weight reduction, improved craft sea-keeping stability, and zero salt corrosion.

Discuss Similar Scope
Documented Case Studies

Encyclopedic Composite Installations: Engineering Performance & Case Studies

Documented industrial case studies detailing chemical media, operating temperatures, structural design parameters, and 25-year verified performance benchmarks.

Article Contents • Case Studies

1. Case Study 1: 50,000L Hydrochloric Acid Tank (Parawada SEZ)

Operating Duty: Storage of 35% concentrated technical grade Hydrochloric Acid (HCl) under direct coastal solar exposure (ambient 42°C, internal chemical temperature up to 60°C).

Engineering Solution: Engineered vertical cylindrical tank (3.2m diameter × 6.5m height) fabricated in accordance with ASTM D3299 using pure Derakane 411 Vinyl Ester resin with a 3.0mm C-glass synthetic veil chemical barrier. 100% Spark tested per ASTM D5162 at 15 kV. Verified leak-free performance with zero wall thinning over 15+ years of continuous service.

2. Case Study 2: DN2000 Scrubber Fume Duct (Thermal Power)

Operating Duty: Wet flue gas exhaust containing SO2, sulfuric acid mist, and abrasive fly ash at 110°C continuous operating temperature.

Engineering Solution: Contact molded large-diameter duct sections utilizing Derakane 470 Epoxy Novolac Vinyl Ester with silicone carbide abrasion-resistant filler plies. Eliminated the frequent corrosion failures that previously destroyed rubber-lined mild steel ducts within 18 months.

3. Case Study 3: Dielectric R13 Walkway Gratings (Deepwater Port)

Operating Duty: Coastal jetty walkways subject to continuous saltwater wave wash, heavy equipment trolley traffic, and oily slip hazards.

Engineering Solution: 38mm molded isophthalic gratings with embedded angular quartz grit top (R13 slip certification) and 316 stainless steel hold-down clips. Outlasted galvanized steel grating by 4x without maintenance or rusting.

4. Case Study 4: Concrete Neutralizing Sump Relining (Steel Plant)

Operating Duty: Acidic wastewater collection sump (pH 1.0–3.5) with cracked, leaking concrete substrate causing environmental contamination.

Engineering Solution: Mobile technicians diamond-ground the concrete, primed with moisture-tolerant epoxy, and installed a 4-ply Derakane 411 fiberglass laminate barrier with 100% spark holiday verification.

Have a Challenging Industrial or Marine Composite Project?

Consult our Visakhapatnam engineering team to discuss scope, drawings, and quotation for your facility.

Request Project Proposal Call +91 94907 49330
Project Technical Dossiers

In-Depth Project Engineering Dossiers & Execution Highlights

Detailed review of scope, operating medium, laminate schedules, and client inspection stage gates.

Case 7: 40 KL Bulk H2SO4 Storage Vessel (Kakinada Fertilizer Complex)

Operating Medium: Sulfuric Acid (70% concentration) at ambient to 45°C.
Design Standard: ASTM D3299 Filament Wound Vertical Flat Bottom with Conical Roof.
Laminate Schedule: 3.5 mm Vinyl Ester Novolac inner liner with dual C-Glass veil, backed with 14 mm filament-wound structural shell at 54.7° geodesic winding angle.
Inspection: 100% Spark Holiday Test @ 10,000V (Zero pinholes) and 24-hr hydrostatic test.

Case 8: Floating Pontoon Walkways & Jetty Gratings (Visakhapatnam Port Authority)

Operating Medium: Marine tidal splash, wave impact, and high passenger traffic.
Specification: 38 mm Molded Isophthalic Gratings with embedded R13 quartz grit surface and 316 Stainless Steel M-Clips.
Performance: 100% zero-rust performance over 7+ years of continuous saltwater immersion with zero slip accidents.

Field Engineering Case Studies

Comprehensive Technical Review of Major Andhra Pradesh Installations

In-depth analysis of engineering challenges, laminate design parameters, and operational milestones.

Case 9: 30 KL High-Purity Solvent Recovery Tank (JNPCL Pharma City, Parawada)

Operating Medium: Mixed Pharmaceutical Mother Liquor containing Toluene, Dichloromethane (DCM), and Acetone at 50°C.
Design Standard: Dual-Laminate PVDF/FRP Tank designed to BS 4994 & ASME RTP-1.
Engineering Solution: 4.0 mm extruded PVDF inner thermoplastic liner backed with high-strength vinyl ester structural filament winding.
Outcome: 100% zero product contamination, zero solvent permeation, verified leak-free operation over 5+ years.

Case 10: Pickling Tank Fume Extraction Hoods (RINL Steel Plant, Visakhapatnam)

Operating Medium: Hydrochloric Acid (HCl 18%) vapors and steam at 80°C.
Design Standard: Heavy contact-moulded Vinyl Ester Novolac with integrated PVC mist elimination baffles.
Engineering Solution: Modular split-cover design with liquid seal troughs and counter-weighted inspection access hatches.
Outcome: Captured 99.8% of corrosive pickling fumes, protecting overhead crane structures and building trusses from acid rust.

Comprehensive Case Dossiers

Exhaustive Technical Case Studies & Verified Plant Performance Milestones

Complete problem descriptions, chemical fluid parameters, laminate schedules, and client testimonials.

Case 11: 15,000 m² ETP Clarifier Weirs & Baffles (AP Industrial Corridor)

Operating Medium: Industrial chemical effluent with fluctuating pH (2.0 to 11.5) and high suspended solids.
Engineering Scope: Custom curved V-notch weir plates, scum baffles, and effluent launders for 6 primary and secondary clarifiers.
Specification: 8.0 mm heavy-duty Vinyl Ester contact moulding with embedded 316 SS slotted mounting holes.
Outcome: Replaced corroding galvanized steel weirs, delivering precise hydraulic flow distribution and zero chemical degradation over 6+ years.

Case 12: 2,500 Meters Dielectric Transformer Substation Gratings (Rayalaseema Power Hub)

Operating Medium: High-voltage outdoor 400 kV substation transformer switchyard.
Engineering Scope: Class 1 Fire-Retardant, non-conductive floor gratings over cable trenches and oil catchment sumps.
Specification: 38 mm Pultruded I-Bar Gratings with dielectric breakdown > 35 kV/inch and ASTM E84 Class 1 rating.
Outcome: Completely eliminated worker electrical flashover risk and eliminated steel grating maintenance.

Comprehensive Engineering Portfolio

Detailed Multi-Sector Case Studies Across Andhra Pradesh

Complete project scopes, operating media, material specifications, and verified client outcomes.

Case 13: 50 KL Demineralized (DM) Water Storage Tank (Thermal Power Plant)

Operating Medium: Ultra-Pure Demineralized Water (Conductivity < 0.1 μS/cm) at ambient temperature.
Engineering Challenge: Ultra-pure DM water is aggressively leaching, pulling metal ions out of standard steel and low-grade plastics, contaminating boiler feed water.
Engineering Solution: 50,000 Litre vertical cylindrical flat-bottom vessel with high-purity Isophthalic resin contact layer washed with alkaline solution to extract trace styrene.
Outcome: Verified zero water conductivity change, zero silica leaching, and flawless operation over 8+ years.

Case 14: Acid Pickling Line Neutralizing Sumps (Vizianagaram Industrial Corridor)

Operating Medium: Spent acid pickling wash effluent (pH 1.0 to 2.5) containing iron chlorides.
Engineering Challenge: Concrete pit walls were severely spalled with exposed, corroding rebar threatening structural building foundations.
Engineering Solution: High-pressure hydro-blasting, epoxy primer, 4-ply 450 gsm Chopped Strand Mat with Vinyl Ester Novolac resin, and 100% spark testing @ 10 kV.
Outcome: 100% liquid-tight chemical containment, certified APPCB zero-ground-leaching compliance.

Case 15: Commercial Trawler Insulated Fish Holds (Kakinada Fishing Harbour)

Operating Medium: Seawater, crushed ice, fish catch at 0°C.
Engineering Challenge: Traditional wooden fish holds rotted, absorbed fish odor, and caused rapid ice melting.
Engineering Solution: Monolithic FRP lining with 100 mm high-density polyurethane foam core and food-grade white gelcoat.
Outcome: Extended ice retention by 48 hours, improving export fish catch quality and vessel profitability.

Case 16: Electrical Battery Room Safety Gratings (Atchutapuram SEZ)

Operating Medium: Sulfuric Acid electrolyte splash and high-voltage DC battery racks.
Engineering Challenge: Corrosive acid drips destroyed steel gratings and created severe electrical grounding hazards.
Engineering Solution: 38 mm Molded Vinyl Ester Gratings with dielectric breakdown > 35 kV/inch and R13 quartz grit surface.
Outcome: Zero corrosion from acid drips and 100% dielectric worker safety during battery maintenance.

Comprehensive Engineering Portfolio

Additional Technical Case Studies Across Andhra Pradesh Infrastructure

Complete project scopes, operating media, material specifications, and verified client outcomes.

Case 17: 12,000 Meters Seawater Cooling Intake Pipeline (Coastal Power Station)

Operating Medium: Raw seawater intake at 32°C with suspended sand and marine micro-organisms.
Engineering Challenge: Concrete pipes developed joint leaks and mild steel pipes rusted out from internal marine bio-fouling.
Engineering Solution: DN1200 Filament-Wound Composite Piping with mirror-smooth vinyl ester liner (C = 150) and bell-and-spigot double O-ring joints.
Outcome: Reduced pumping head by 24%, zero joint leaks, and 100% rust-free operation over 7+ years.

Case 18: Acid Pickling Line Scrubbing Stacks (Ferro-Alloy Plant, Bobbili)

Operating Medium: Sulfuric Acid (H2SO4) and Sulfur Dioxide (SO2) fumes at 70°C.
Engineering Challenge: Corrosive acid fumes destroyed mild steel chimney ducting within 18 months.
Engineering Solution: Self-supporting 32-meter tall filament-wound FRP scrubber chimney with external helical aerodynamic vortex strakes.
Outcome: 100% wind cyclonic stability (designed to 50 m/s basic wind speed) and zero acid corrosion over 6+ years.

Project Technical Profiles

Field Project Profiles Across Andhra Pradesh Industrial Clusters

Additional case studies documenting scope, fluid parameters, laminate design, and operational success.

Case 19: 25 KL Phosphoric Acid (H3PO4 85%) Storage Tanks (Kakinada Port Hub)

Operating Medium: Concentrated Green Phosphoric Acid at 65°C.
Engineering Challenge: Phosphoric acid contains abrasive fluorosilicates and sulfuric acid residues that rapidly corrode standard 316L stainless steel vessels.
Engineering Solution: Heavy-duty filament-wound vessel built with Vinyl Ester Novolac resin and triple synthetic polyester surface veil (Nexus) barrier.
Outcome: Verified zero wall thinning, zero chemical softening, and 100% leak-proof storage over 6+ years.

Case 20: 3,200 Meters Coastal Port Jetty Catwalk Gratings (Gangavaram Deepwater Port)

Operating Medium: Continuous marine wave splash, salt spray, and heavy container terminal foot traffic.
Engineering Challenge: Galvanized steel mesh gratings rusted out within 18 months, causing severe pedestrian safety risks.
Engineering Solution: 38 mm Molded Isophthalic Gratings with embedded R13 quartz grit surface and 316 Stainless Steel M-Clips.
Outcome: 100% rust-free performance over 7+ years with zero maintenance costs and zero slip incidents.

Project Execution Assurance

Turnkey Quality Execution & Long-Term Client Value

Delivering verifiable, certified composite solutions that eliminate plant maintenance costs across Andhra Pradesh.

Comprehensive Project Execution & Client Satisfaction Guarantee

With over two decades of dedicated composite engineering excellence in Visakhapatnam, FRP Marine & Industrial Solutions has successfully delivered over 500 major composite equipment installations across chemical, fertilizer, pharmaceutical, marine, power, and water treatment sectors throughout Andhra Pradesh.

Every project—whether a single bespoke machinery guard, a 50 KL hydrochloric acid storage vessel, or a complete plant-wide walkway grating replacement—is executed with disciplined engineering calculations, verified raw material certifications, stage-gate non-destructive testing, and turnkey field installation support.

Comprehensive Project Quality Documentation Package

Every delivered project across Andhra Pradesh is accompanied by a formal engineering dossier comprising approved General Arrangement CAD drawings, laminate schedules, raw material test certificates (resins, catalysts, glass reinforcements), Barcol hardness inspection logs (ASTM D2583), 10 kV DC high-voltage spark holiday test certificates (ASTM D5162), and 24-hour hydrostatic proof test chart recordings.

We work seamlessly with leading third-party inspection (TPI) agencies including Bureau Veritas, TÜV SÜD, SGS, DNV-GL, and Engineers India Limited (EIL) to ensure full compliance with client specifications and international engineering standards.

Comprehensive Engineering Assurance & Warranty Policy

All composite systems manufactured by FRP Marine & Industrial Solutions in Visakhapatnam are designed strictly to ASTM, BS, and ASME standards, featuring 3-zone monolithic construction, verified ≥ 98% cross-linking density (Barcol hardness ≥ 40), and 100% spark holiday testing. Backed by comprehensive manufacturer warranties and dedicated field technical support across all 16 districts of Andhra Pradesh, we provide industrial plants and maritime vessels with certified zero-corrosion structural performance for over 25 to 35+ years.
